VRscan

Obecně

The VRScanned material allows the rendering of scanned BRDF material data stored in .vrscan files. These files are produced by Chaos Group's own internal material scanner and accompanying material creator software.
The VRScanned material requires a separate license to work correctly. Without a license, the material will not show its UI and will render with a watermark, otherwise, it should be able to render the sample scenes below.
The scanned material renders the captured appearance of an actual physical material sample, that has been scanned with special scanner hardware. The material goes beyond single-point BRDF capture and can faithfully represent the textured appearance of a large number of real-world surfaces using bidirectional texture function (BTF) approximation.
Because the scanned material simply reproduces the way a physical material responds to light, is has no notion of "diffuse" or "reflection" components, "normal" or "bump" maps.
Currently, the material can render only opaque surfaces. Also, for the moment except for some general tint control, the material is unmodifiable - i.e. you can't change glossiness, increase reflectivity etc. You can only change the overall tint of the material. In its present form, the material is targeted at users that need to match exactly a given real-world sample.
The .vrscan files tend to be quite large as they need to pack a lot of data (they need to describe the BRDF of the material over its entire surface).
For more details on VRscans, please see the Chaos Scans documentation space for information on downloadable sample scenes and Frequently Asked Questions or visit the VRscans.com website.

Možnosti nastavení

From the Add Attribute button, you can select additional attributes that can add up to the appearance of the material. For more information, see the Attributes section.
Holding down Ctrl (or Cmd on macOS) while having the Add Attribute menu open, allows selecting multiple entries without closing the dropdown.
The context options of the Color Slot allow to Copy and Paste a color from one color slot to another, as well as to reset the color selection.
A Reset option is provided in the context menu of each Number Slider. You can reset the slider value to the default one.

Parametry

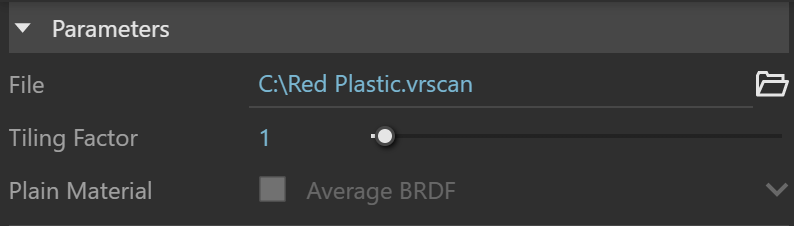

File – The file name with the data for the scanned material; usually has a .vrscan extension.
Tiling Factor – Global multiplier for U and V coordinates.
Plain Material – A strategy used for material display. It controls the visibility of textures (if present). Possible values are:

  • Average BRDF – Averages the BRDF and removes any anistropy. This mode can be used on objects without proper UV coordinates.
  • Average isotropic BRDF – Averages the BRDF and can be used to speed up the rendering for previews. Because texture details are removed, this also removes any tiling artifacts that might arise if the scanned sample does not tile very well. UV coordinates are still needed because most BRDFs are slightly anisotrpic.

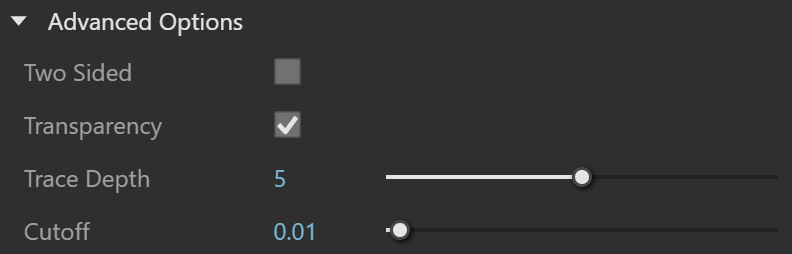

Advanced Options (pokročilá nastavení)

Two Sided – Forces the back-facing polygons to be shaded in the same way as the front-facing ones. When this option is disabled, the back-facing polygons appear black. Transparency – Disables transparency for materials that store such information. this can be useful for speeding up the rendering, especially when the transparency produces little or no effect.
Trace Depth – Controls the number of reflection bounces. A value of -1 means that the reflection bounces are controlled by the global V-Ray trace depth in the Global switches rollout of the Renderer Settings.
Cutoff – A threshold used to speed up reflections. If the contribution of reflections falls below this threshold, the reflections are not traced. This is similar to the Cutoff threshold of the V-Ray Generic material.

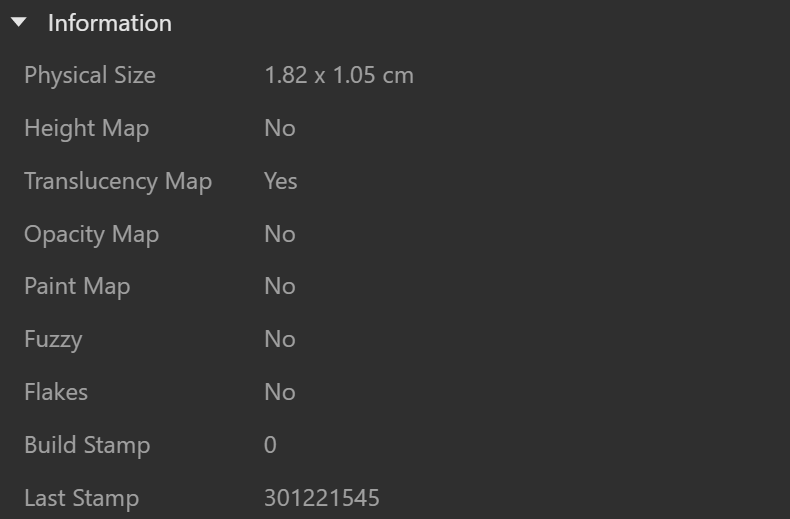

Information

The section displays some useful information contained in the .vrscan file, like the actual material sample size.

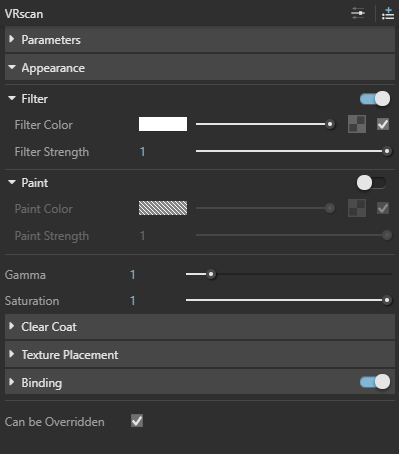

Appearance (vzhled)

The Appearance parameters allow for further customization of the scanned material.
Filter – Enables the use of the color filter.
Filter Color – A color multiplier for the material sample and can be used to tint the material (it affects the color of the reflections as well as a post effect).
Filter Strength – Multiplies the effect of the filter.
Paint – Enables the use of Paint Color.
Paint Color – Changes the color of the material without loosing the texture or change the reflection color. For example, changing the color of wood or leather without losing their textures.
Paint Strength – Multiplies the effect of the paint.
Gamma – Adjusts the gamma of the material (including paint color and filter color if used) as a post effect.
Saturation – Controls the saturation of the material (including paint color and filter color if used) as a post effect.

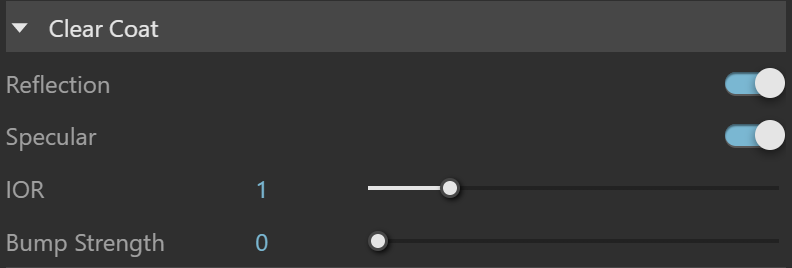

Clear Coat (čirý lak)

The clear coat parameters are similar to those found in the VRay Car Paint Material. These parameters are only available if while scanning an object, it is determined that the object possesses the properties of a material with a clear coat.
Reflection – Enables the tracing of a clear coat layer for the material's reflection.
Specular – Enables highlights from point light sources for the coat layer.
IOR – Determines the Index of Refraction of the coat layer and controls the strength of the reflections. A value of 1.0 does not produce any reflections and disables the coat layer. Higher values produce stronger clear coat reflections. The .vrscan file contains the correct value (typically 1.6) for this parameter, which is set automatically when the file is loaded but can be adjusted higher or lower if needed.
Bump Strength – The coat layer has a built-in bump map stored into the material sample file. This parameter allows control over the strength of that bump.

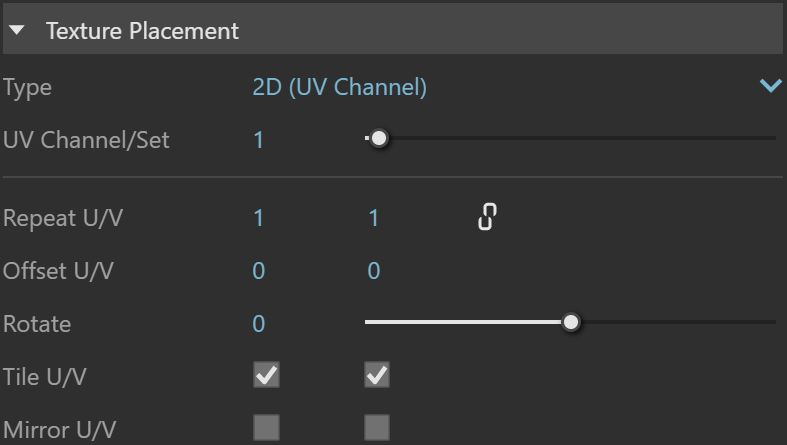

Texture Placement (umístění textury)

Type – Controls how the texture is positioned on the geometry.

  • 2D (UV Channel) – The texture uses the object UV coordinates.
  • Tri-Planar Projection – The texture will be automatically projected onto the object (along the X, Y, and Z object space axis). This works similarly to the Tri-Planar texture. Use the Tiling Factor parameter to change the projected texture size.

2D (UV Channel)

UV Channel/Set – Specifies the index of the mapping channel data to use. A value of 1 takes the first available channel.
Repeat U/V – Determines how many times the texture is repeated in the 0 to 1 UV square.
Lock U/V Repeat – Locks the U/V Repeat.
Offset U/V – Controls the texture offset in the U and V direction.
Rotate – Rotates the texture (in degrees).
Tile U/V – Tiles the texture in the U and V direction. If the option is disabled, the Default texture color is used outside the 0 to 1 UV square. Default color is found in Parameters > Color Manipulation.
Mirror U/V – Mirrors the texture in the U and V direction separately. The option cuts the texture in the half flipping one side vertically or horizontally. This can be used to avoid seams in-between non-tileable repeated textures.

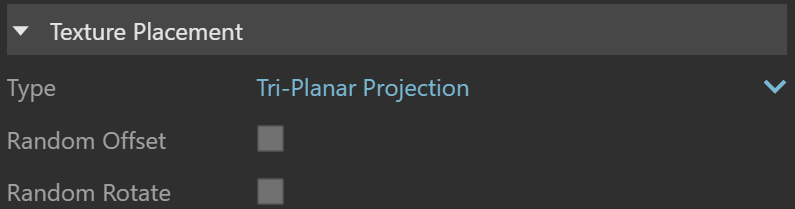

Tri-Planar Projection

Random Offset – Randomizes the texture offset. When rendering many instances using the same material, with this option enabled, you get a variation of the look.
Random Rotate – Randomizes the material rotation from one object to another. When rendering many instances using the same material, with this option enabled, you get a variation of the look.

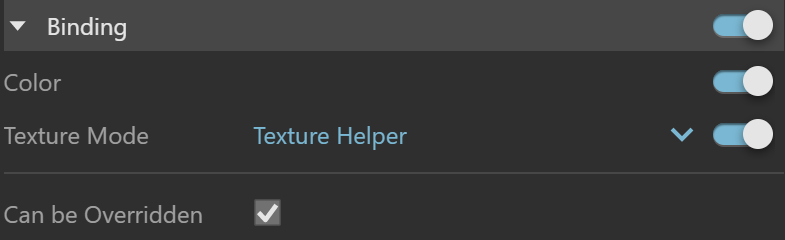

Binding (propojení do SketchUpu)

Tato nastavení materiálu zapínají propojení V-Ray materiálu naodpovídající materiál ve SketchUpu.

Color – Propojení barvy materiálu. Změna barvy materiálu ve V-Ray se projeví i na materiálu ve SketchUpu, a naopak.

Texture Mode – Propojení textur. Změna textury ve V-Ray se projeví i na materiálu ve SketchUpu, a naopak.

  • Auto – Defaultně je nastaveno, že se propojí difuzní textura materiálu s texturou SketchUpu.
  • Texture Helper – Dovoluje použít takzvaný Texture Helper ve SketchUpu. Ten vám může pomoct při nastavovaní správného umístění textury, kterou nelze na objektu ve SketchUpu normálně vidět, protože je z V-Ray.
  • Custom – Zde si můžete vybrat jakoukoliv texturu z V-Ray materiálu, aby se použila jako viditelná textura ve SketchUpu.

Texture – Ve viewportu se zopbrazí zvolená textura. Nikoliv však procedurální. Zobrazení textury ve viewportu nijak neovlivní, jak se bude materiál renderovat ve V-Ray rendereru a používá se především pro účel náhledu.

Override (přepis materiálu)

Can be Overridden – když je tato funkce zapnutá, je možno materiál přepsat funkcí Override material, kterou lze najít v nastavení rendereru.

Další funkce

Do tohoto materiálu lze přidat ještě následující funkce.

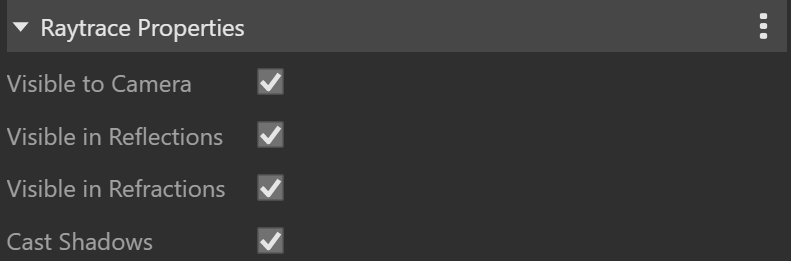

Raytrace Properties (nastavení výjimek pro tento materiál)

Visible to Camera – vypnutím této funkce se materiál stává neviditelným pro kameru.

Visible in Reflections – vypnutím této funkce se materiál stává neviditelným v odrazech.

Visible in Refractions – vypnutím této funkce se materiál stává neviditelným v průhlednosti.

Cast Shadows – vypnutím této funkce způsobíte, že jakýkoliv objekt s tímto materiálem nebude vytvářet žádné stíny.

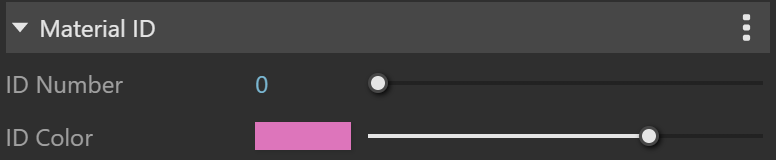

Material ID

ID Number – při renderu vytvoří jednotlivé RGB masky pro každý materiál, pokud je spuštěno MultiMatte v renderovacích elementech.

ID Color – zde si můžete vybrat barvu, která bude tento materiál reprezentovat v renderovacím elementu Material ID VFB.
