CZ návody V-Ray 5 for SketchUp

© Nookta

Generic Sheen

Sheen – je vrstva materiálu Generic, která vytváří zvláštní odrazivou vrstvu na difuzní vrstvě materiálu. Používá se nejčastěji k vytváření látek, např. saténu.

Poznámka: Materiál se skládá z různých vrstev (materiálových kanálů), které lze přidávat postupně. Tento materiál můžete vytvářet i v takzvaném pokročilém módu (Advanced Options), kdy se vám zobrazí další užitečné parametry.

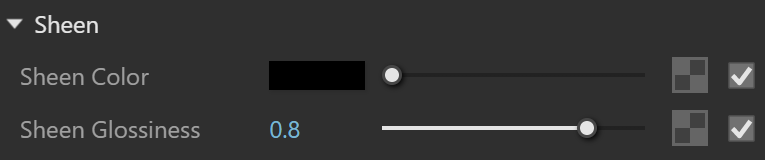

Sheen (vrstva laku)

Dostupné pouze v pokročilém nastavení materiálu (Advanced mode).
Sheen Color – Specifies the color of the sheen layer. Black color disables the effect.
Sheen Glossiness – Available when the Surface control option is set to Use Glossiness. Controls the sharpness of reflection. A value of 1.0 means all of the light reaches the diffuse color, whereas when the value is smaller, the cloth material looks glossier. See the Sheen Glossiness example below.
Sheen Roughness– Available when the Surface control option is set to Use Roughness. Controls the sharpness of reflection. A value of 0.0 means all of the light reaches the diffuse color, whereas when the value is higher, the cloth material looks glossier.

Example: Sheen Glossiness

This example shows how changing the glossiness parameter of the sheen layer affects the material. A smaller value makes the sheen layer reflect most of the light. Increasing the value allows more light to reach the diffuse component.

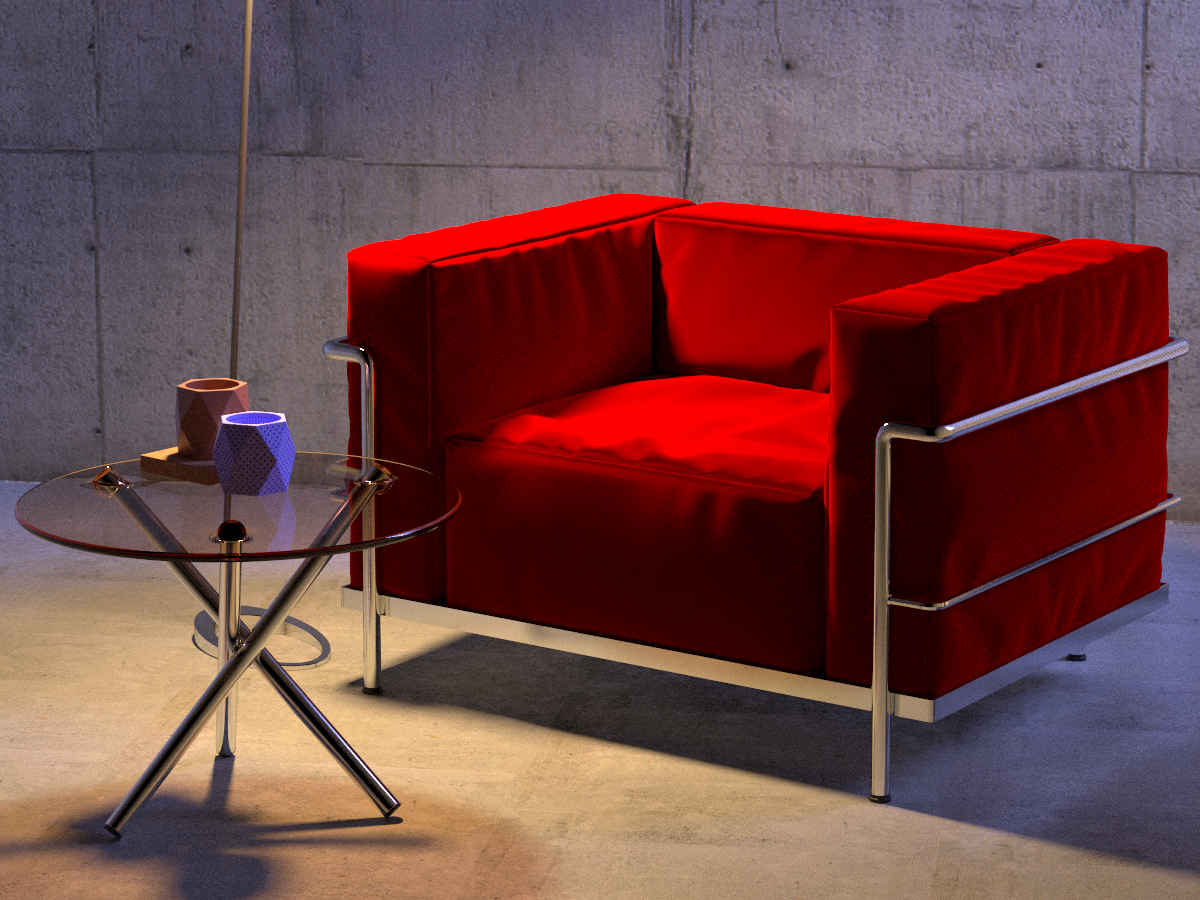

Sheen Reflection = 0.1

Sheen Reflection = 0.3

Sheen Reflection = 0.5

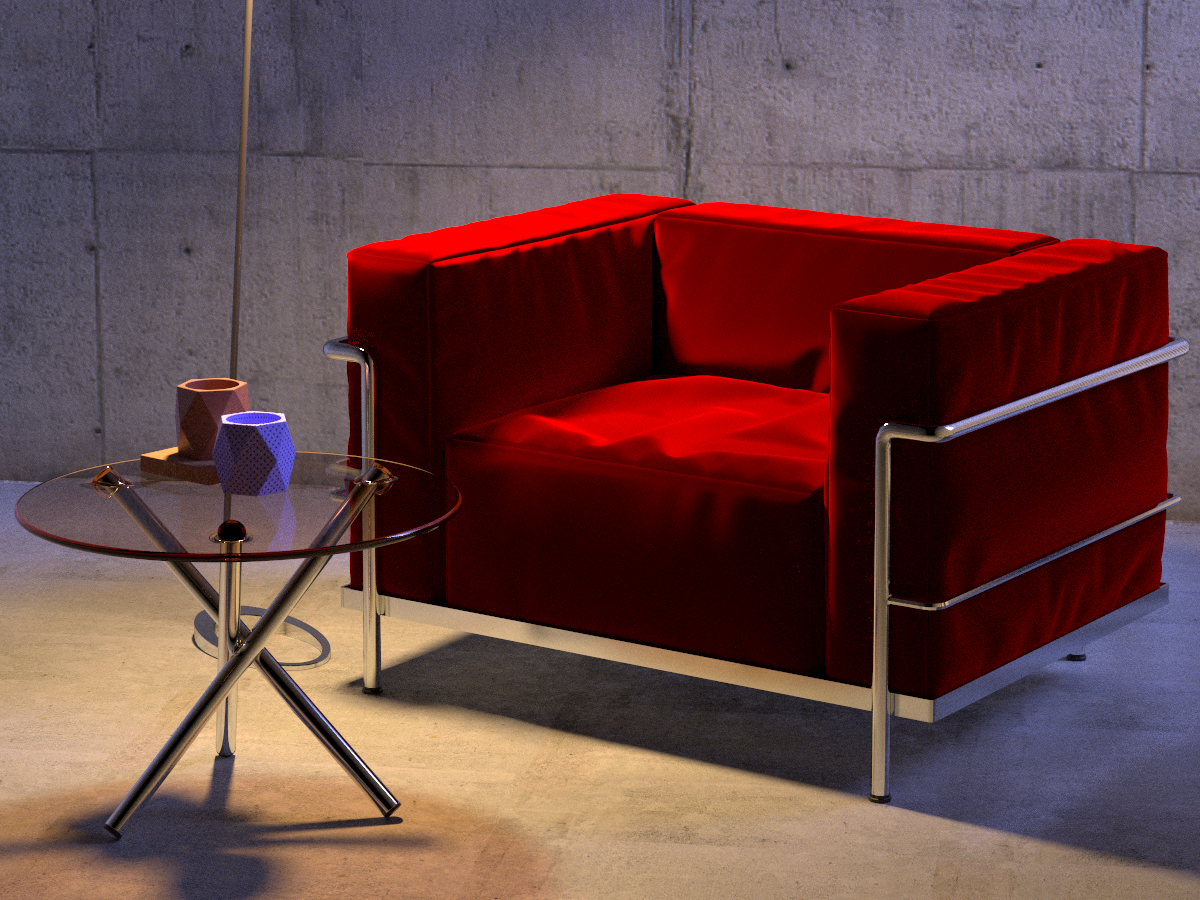

Sheen Reflection = 0.6

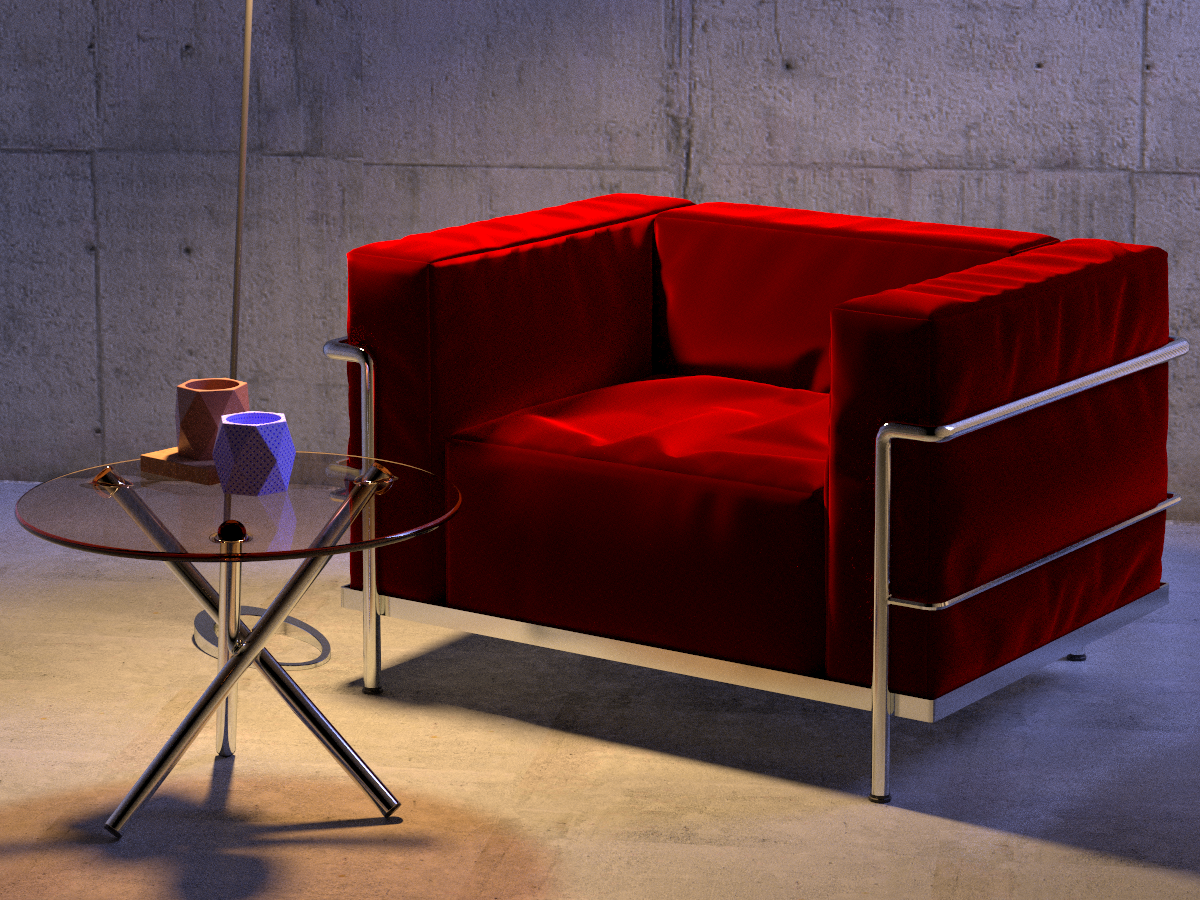

Sheen Reflection = 0.8

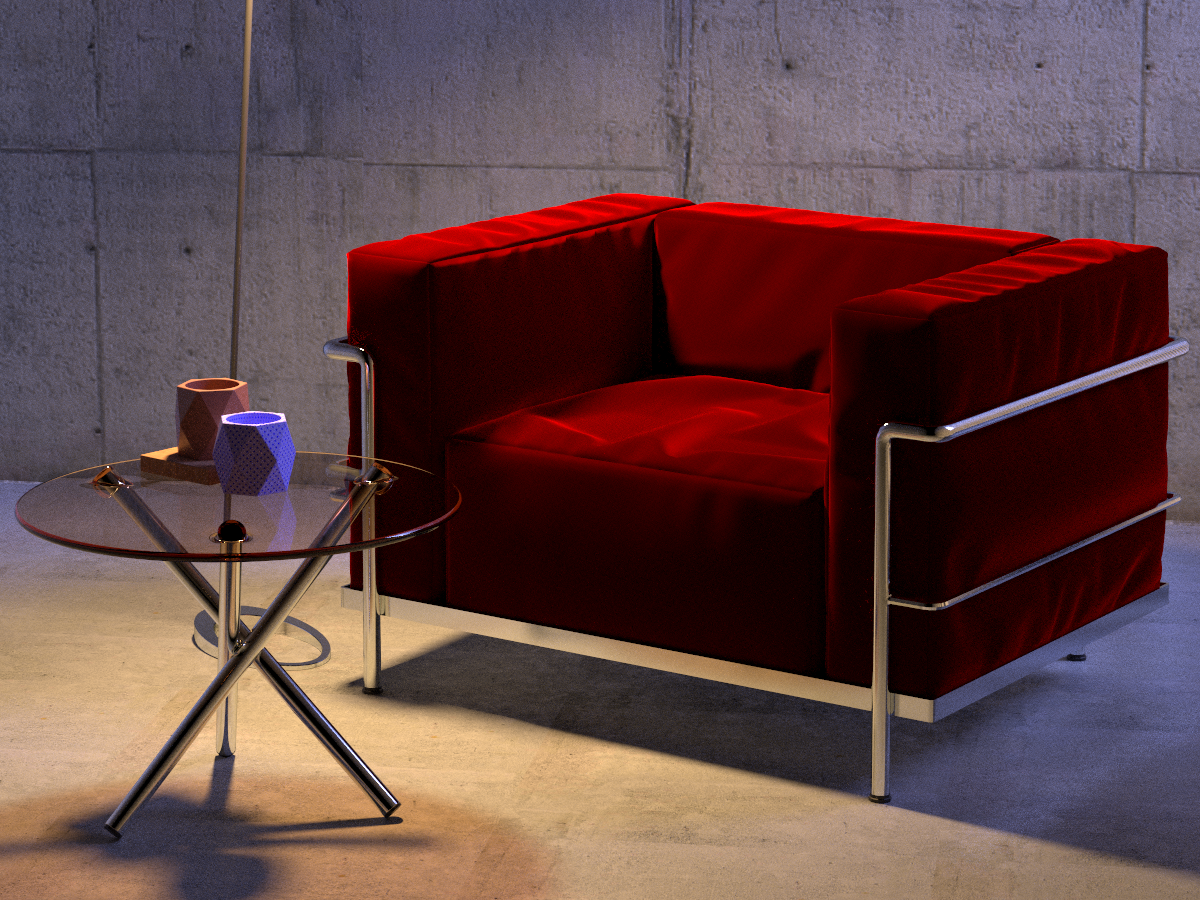

Sheen Reflection = 0.9

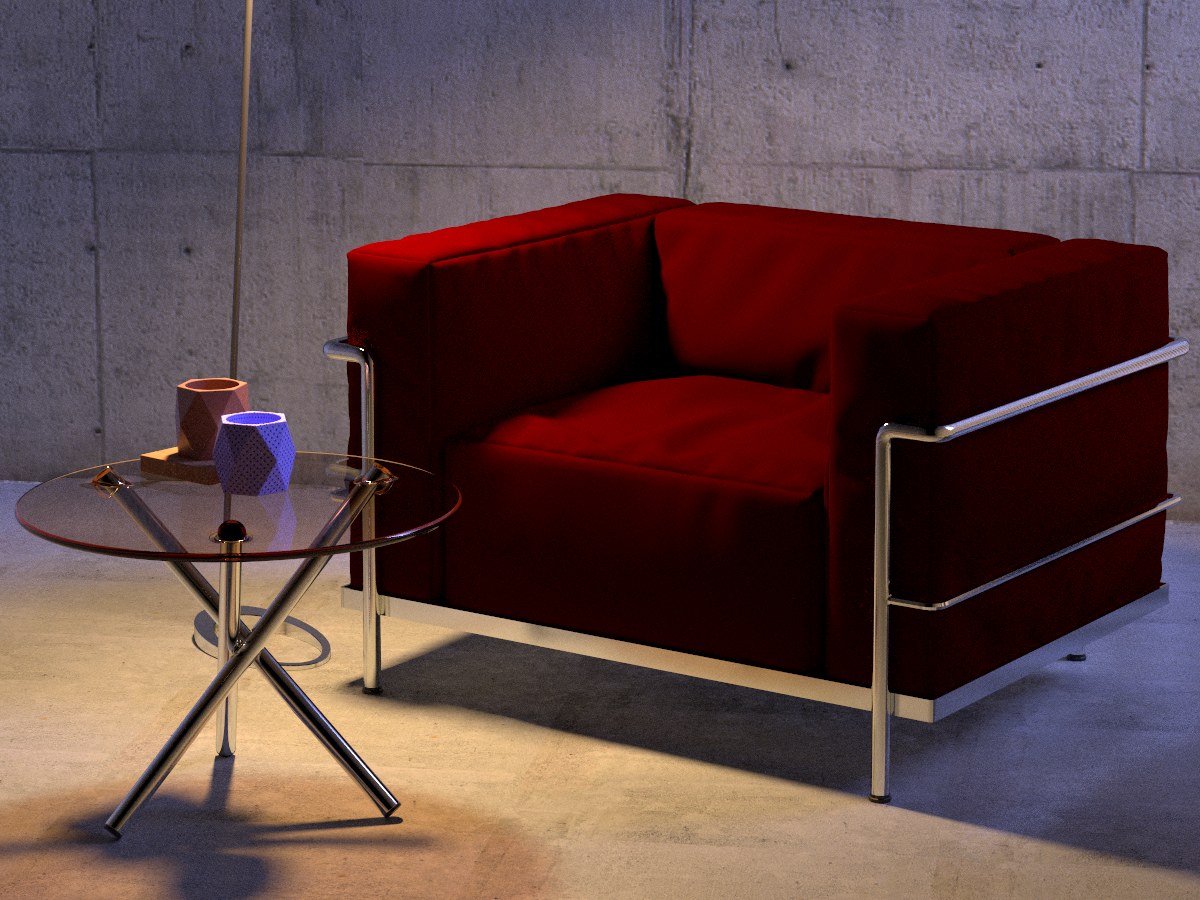

Sheen Reflection = 1
